Extreme VX9000安裝方式

2025-08-22 | Extreme

本篇教學將說明Extreme VX9000於Vmware環境安裝方式。

目錄

1. 環境說明#

  • VX9000版本：7.7.1.11
  • Vmware版本：8.0.3

2. 部署虛擬機器#

2.1. 下載 VX9000 檔案#

  • 至Extreme Support Portal 下載VX9000 ZIP檔案

    Extreme Support Portal Downloads Home
    Figure 1: Extreme Support Portal Downloads Home

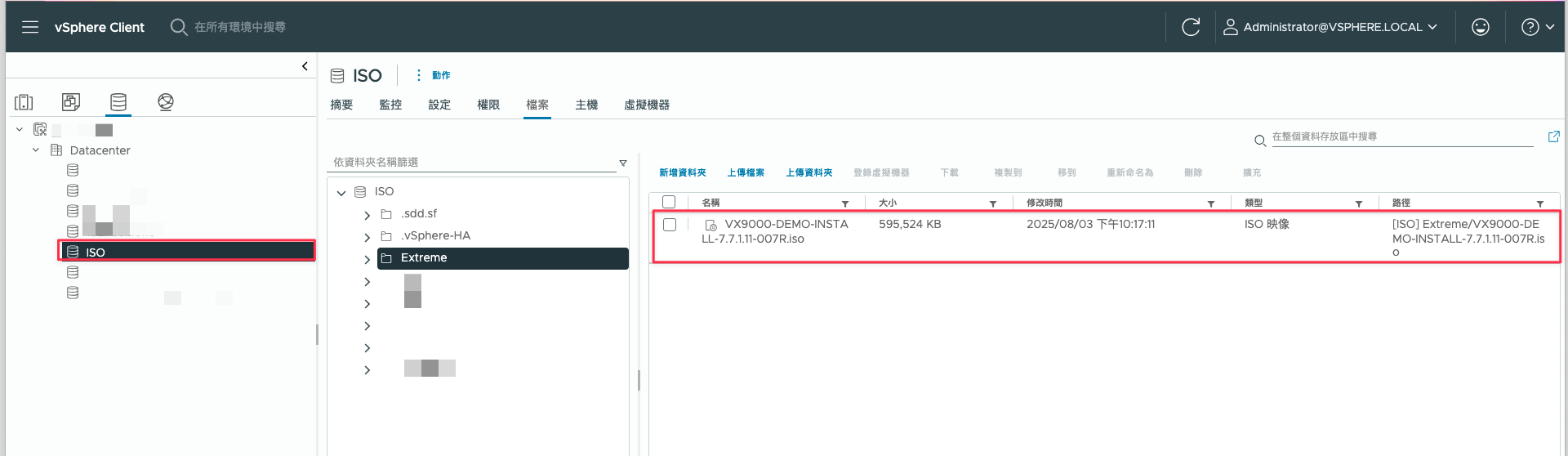

  • 解壓縮ZIP檔案並將裡面的ISO檔案上傳至Vmware Datastore

    Upload ISO to Vmware Datastore
    Figure 2: Upload ISO to Vmware Datastore

2.2. 建立虛擬機器#

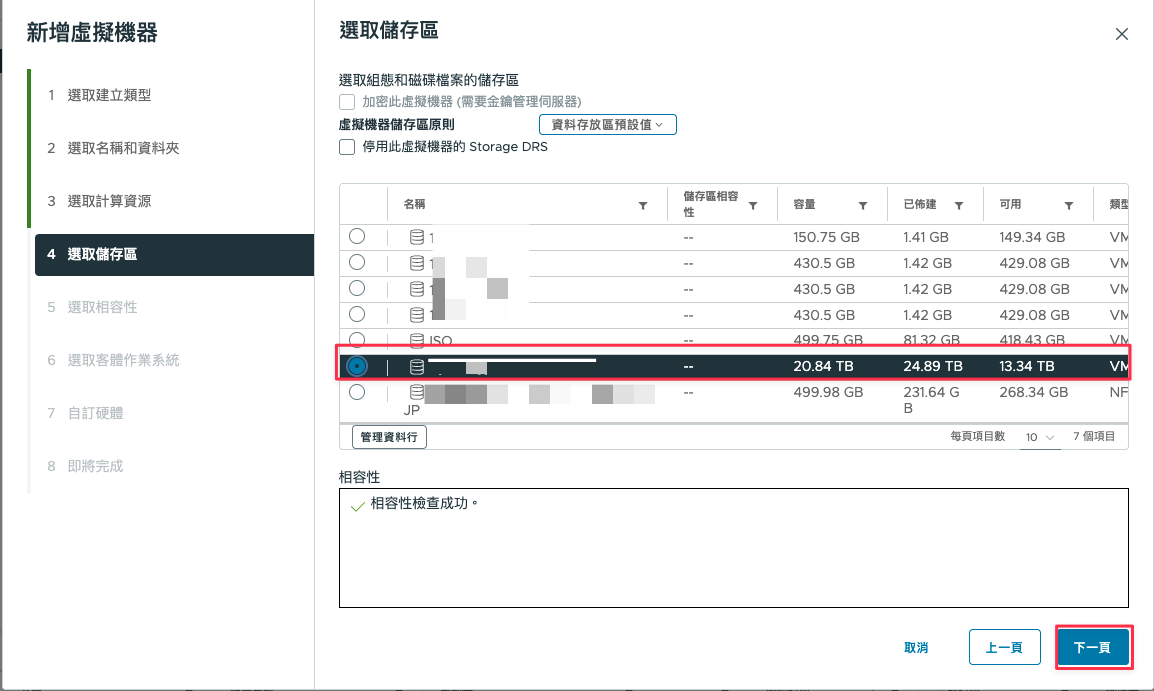

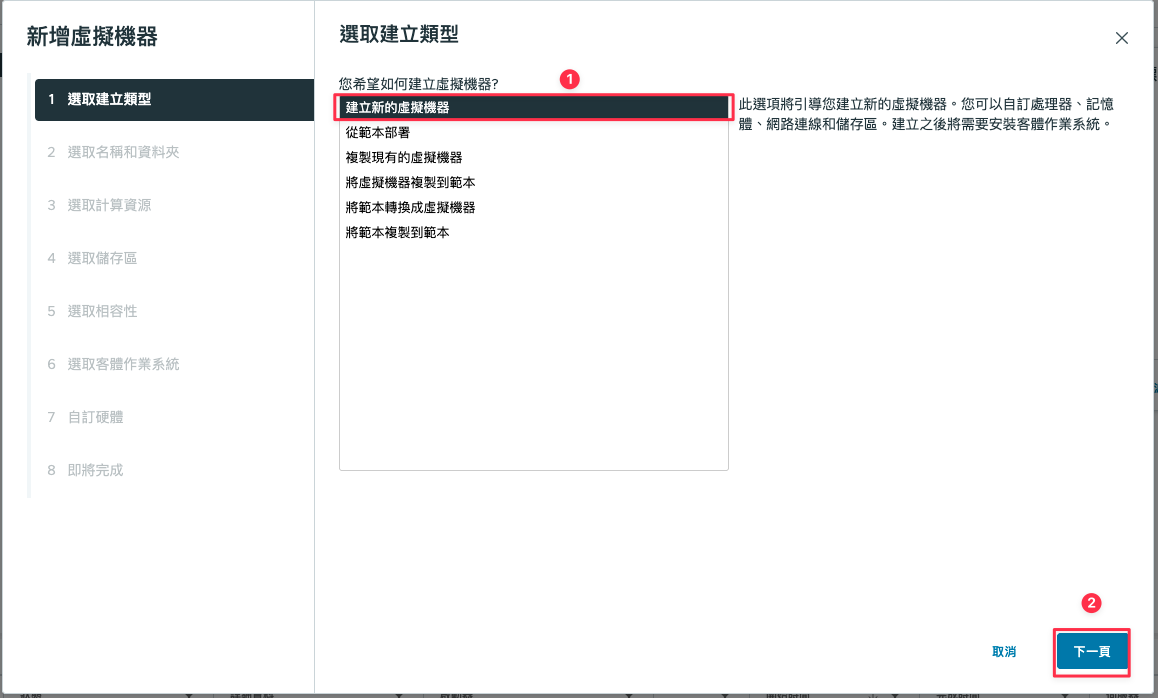

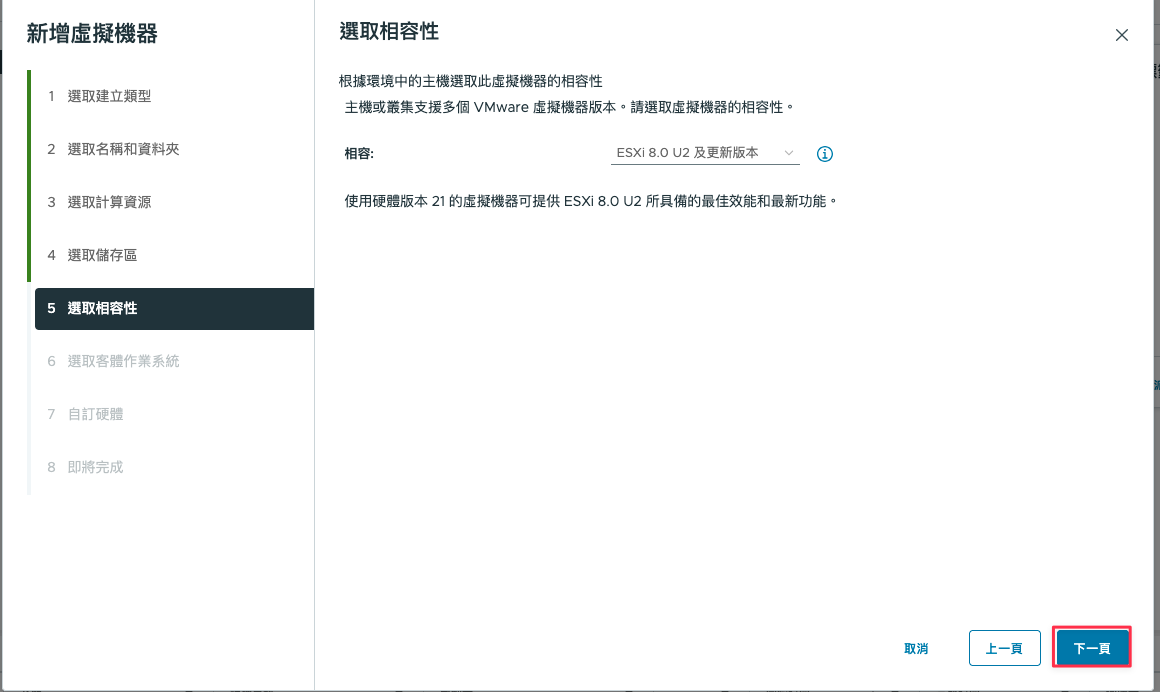

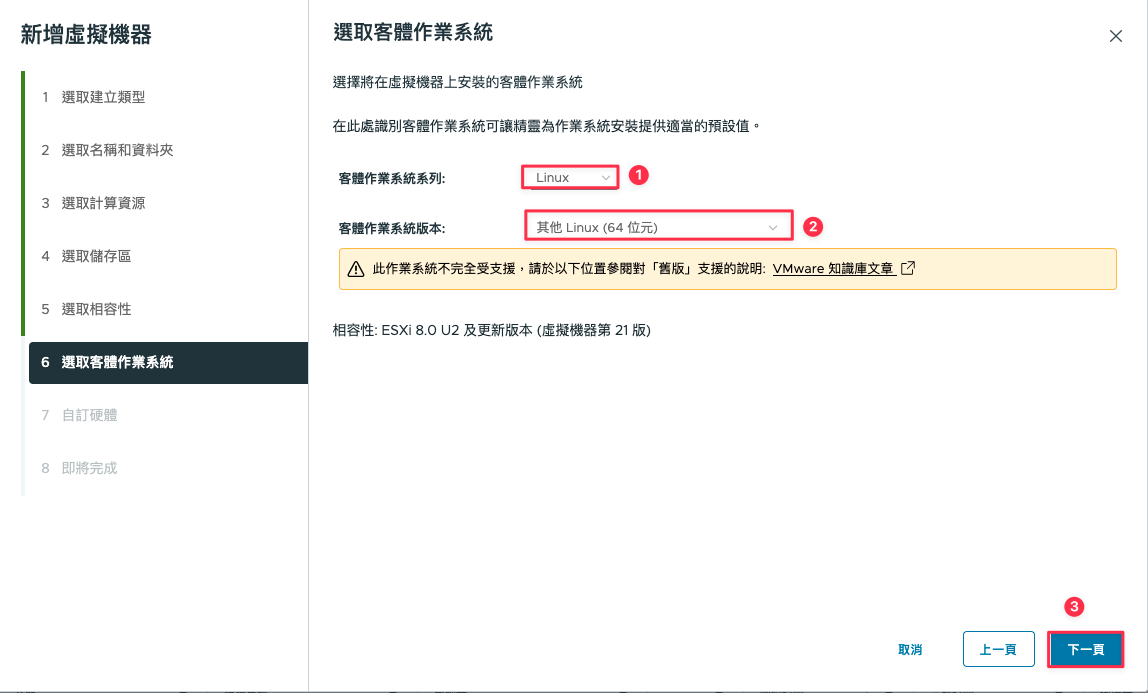

Create Virtual Machine
Figure 3: Create Virtual Machine

Create Virtual Machine
Figure 4: Create Virtual Machine

Create Virtual Machine
Figure 5: Create Virtual Machine

Create Virtual Machine
Figure 6: Create Virtual Machine

Create Virtual Machine
Figure 7: Create Virtual Machine

Create Virtual Machine
Figure 8: Create Virtual Machine

Create Virtual Machine
Figure 9: Create Virtual Machine

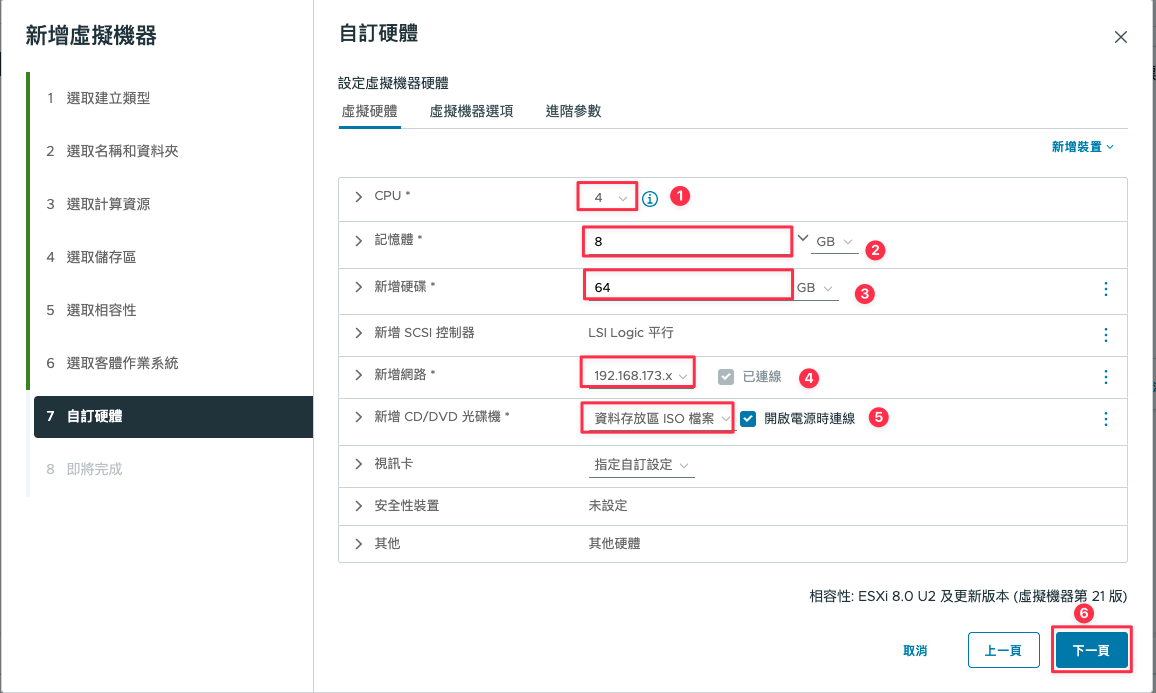

虛擬機器規格可以依據VX9000 Datasheet 設定，光碟機部分需要掛載 Vmware Datastore中的 VX9000 ISO檔案

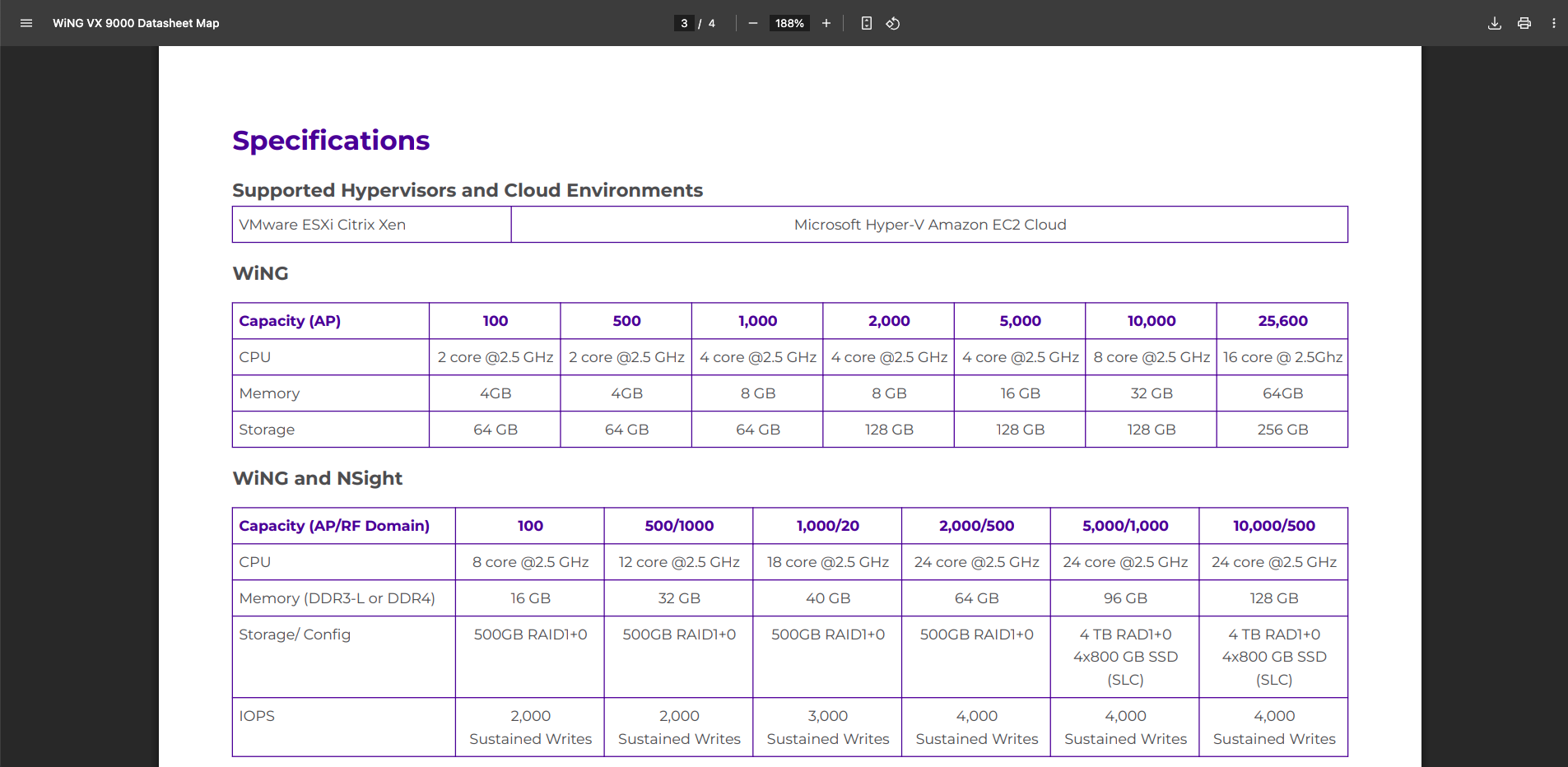

VX9000 Datasheet
Figure 10: VX9000 Datasheet

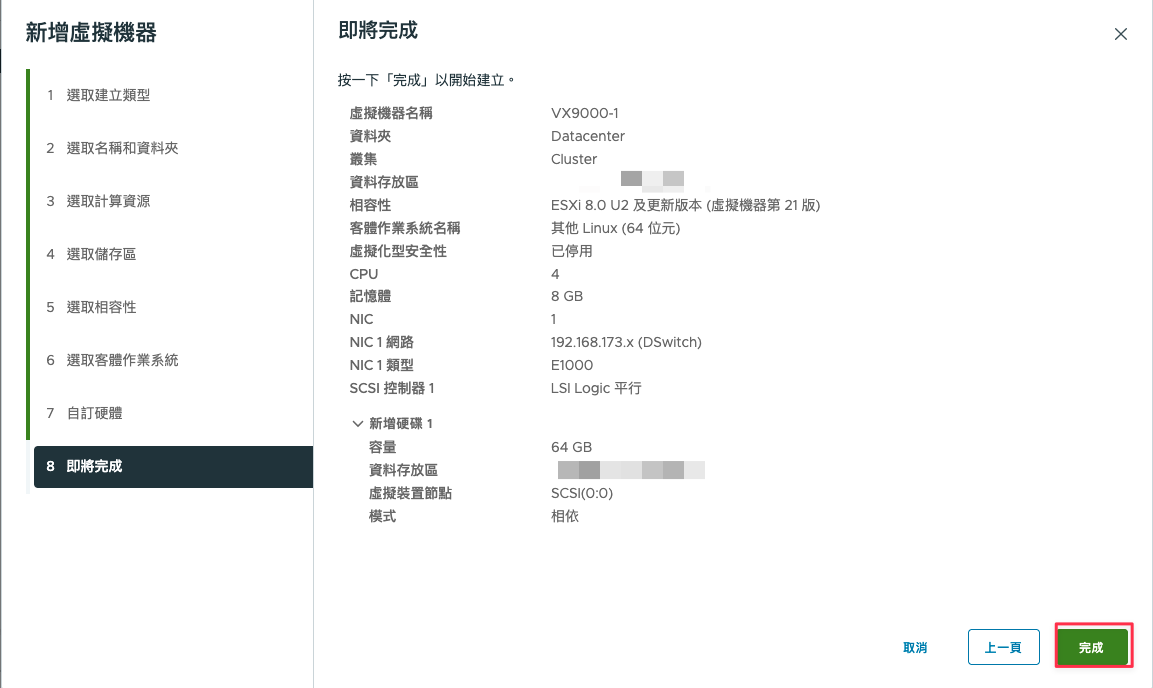

Create Virtual Machine
Figure 11: Create Virtual Machine

3. 安裝#

VM 開機後打開 WEB 主控台

Web Console
Figure 12: Web Console

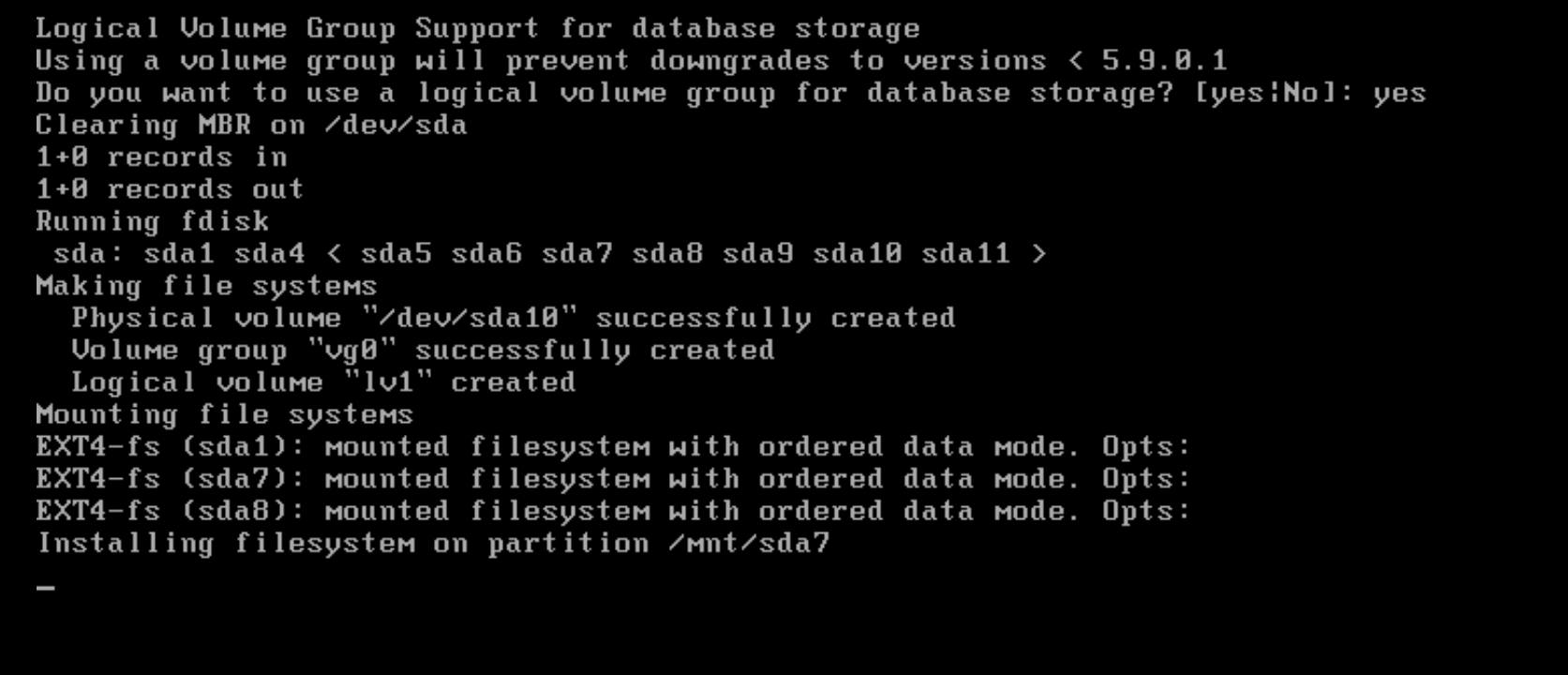

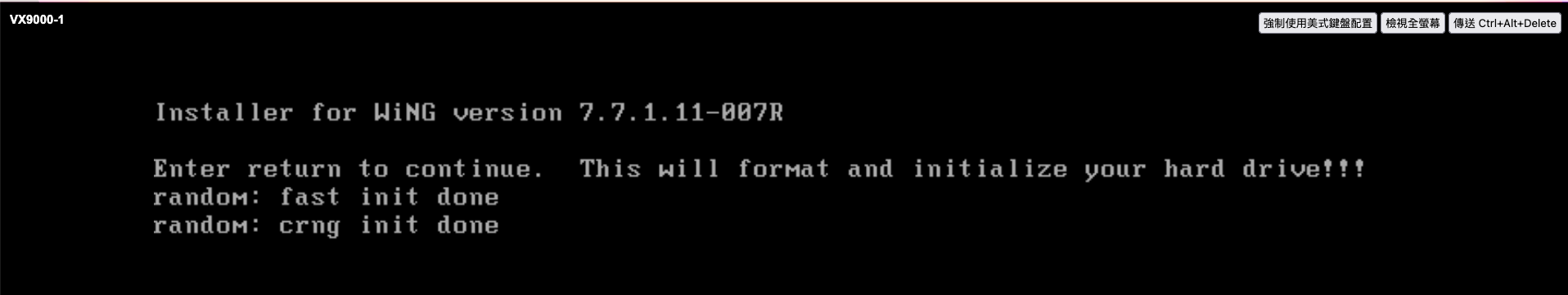

輸入enter開始安裝作業

Installation
Figure 13: Installation

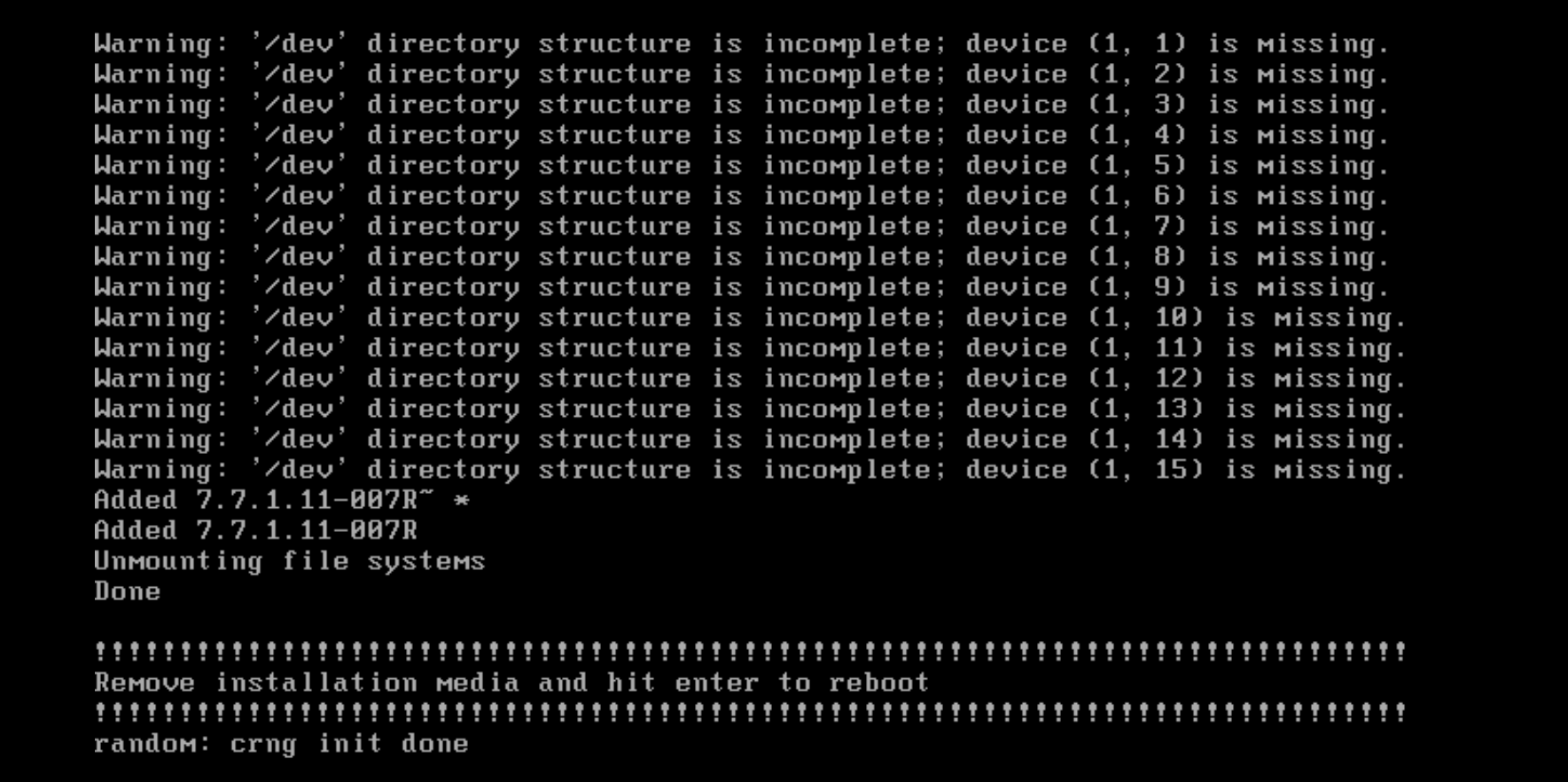

移除安裝光碟後輸入enter重新開機

Reboot
Figure 14: Reboot

4. 初始化設定#

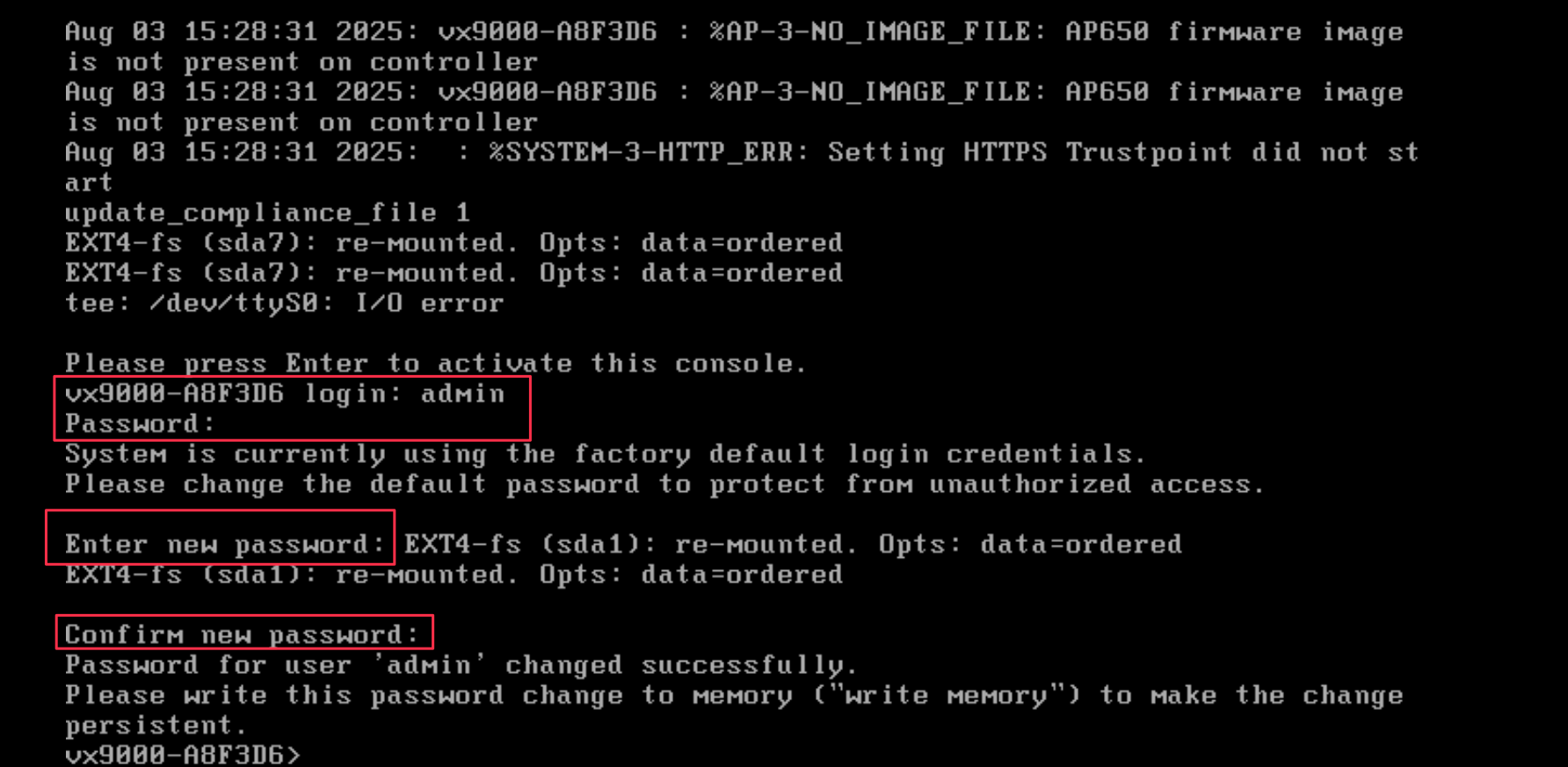

4.1. 登入Console#

預設帳號：admin，密碼：admin123

Login and Change Password
Figure 15: Login and Change Password

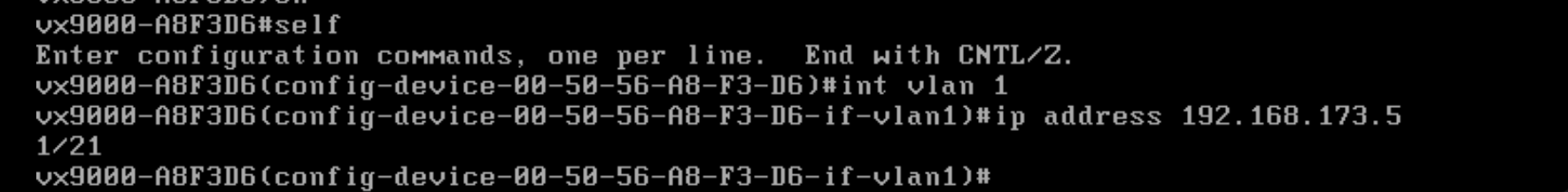

4.2. 設定IP#

enable
self
interface vlan 1
ip address 192.168.173.51/21

Setting IP Address
Figure 16: Setting IP Address

4.3. 設定Default Gateway#

ip default-gateway 192.168.172.254

Setting Default Gateway
Figure 17: Setting Default Gateway

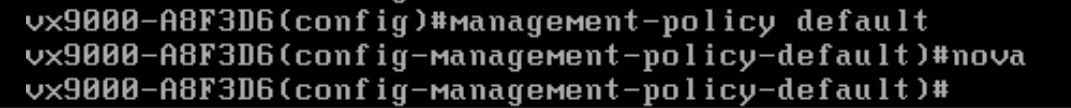

4.4. 啟用NOVA UI#

management-policy default
nova

Enable Nova UI
Figure 18: Enable Nova UI

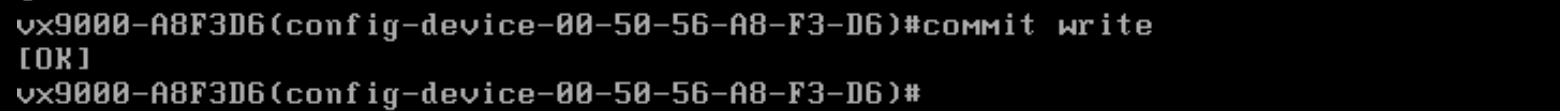

4.5. 提交並儲存#

commit write

Commit Write
Figure 19: Commit Write

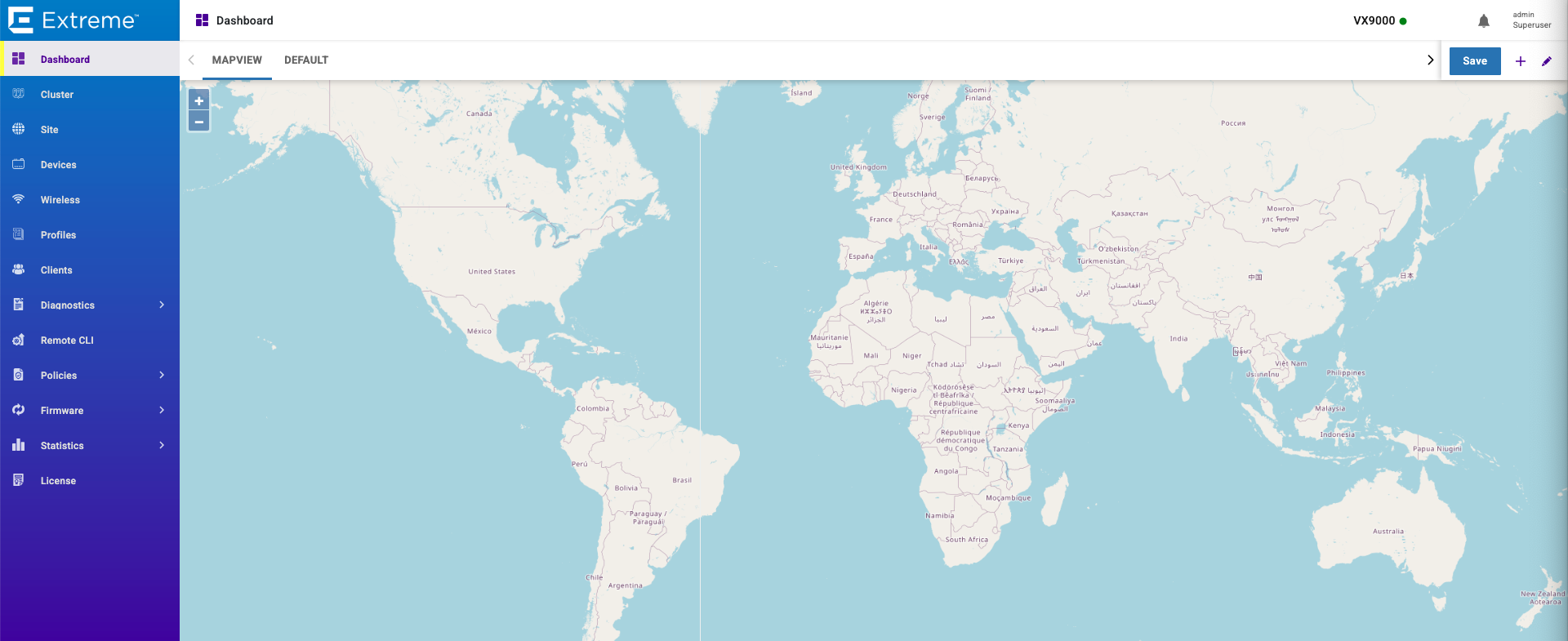

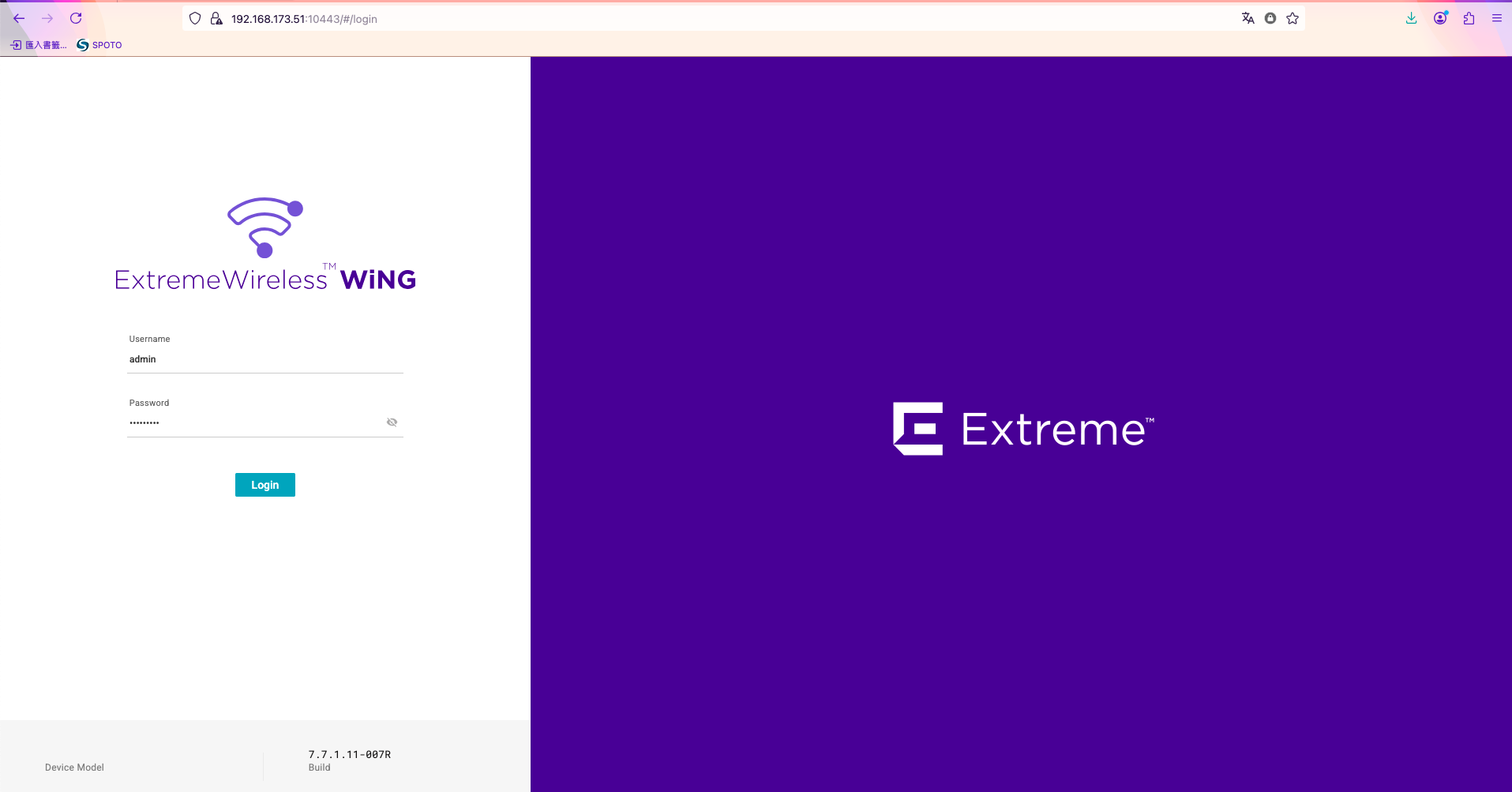

4.6. 登入NOVA UI#

https://<VX9000 IP>:10443

Nova UI
Figure 20: Nova UI

Nova UI
Figure 21: Nova UI
